Dental Suction
VSA 300 S Suction System
(4.9/5 - 127 reviews)

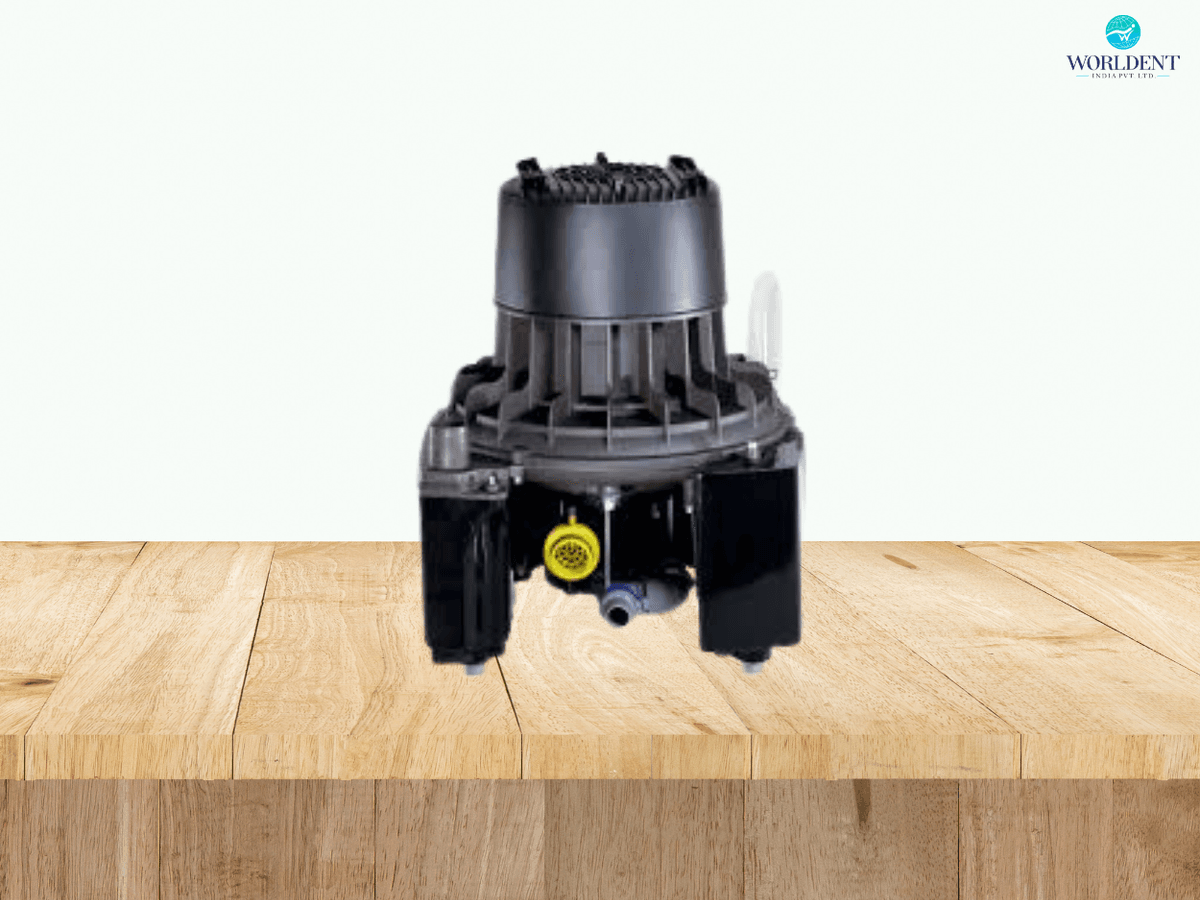

The Dürr VSA 300 S is a compact 3-in-1 suction system combining vacuum generation, two-stage liquid separation, and amalgam separation into one unit. Designed for single-surgery or single-operator applications, it delivers efficient suction, quiet operation, and meets regulatory standards for amalgam waste handling. It’s ideal for clinics looking for hygienic, low-maintenance central suction integrated with separation features in a small footprint.
Key Features
3-in-1 Technology
Instant Vacuum Start-Up
High Foam Tolerance
Compact & Lightweight Design
Low Noise
Regulatory Compliance
Easy Maintenance
2 Year Warranty
Free Installation
Technical Specifications
Voltage230 V, single-phase
Frequency50 Hz
Power Input≈ 580 W
Current Consumption≈ 2.9 A
Speed (RPM)≈ 2,750
Maximum Vacuum≈ -180 mbar
Unimpeded flow rate≈ 700 L/min
Max fluid flow rate≈ 5 L/min
Noise Level without Housing≈ 63 dB(A)
Noise Level with Housing≈ 54 dB(A)
Dimensions (H × W × D)48 × 31 × 31 cm
Weight≈ 14 kg
Duty Cycle100 % (continuous operation S1)
Number of Workplaces / Operators1 treatment station / single operator
