Dental Suction
VS 300 S Suction System
(4.9/5 - 127 reviews)

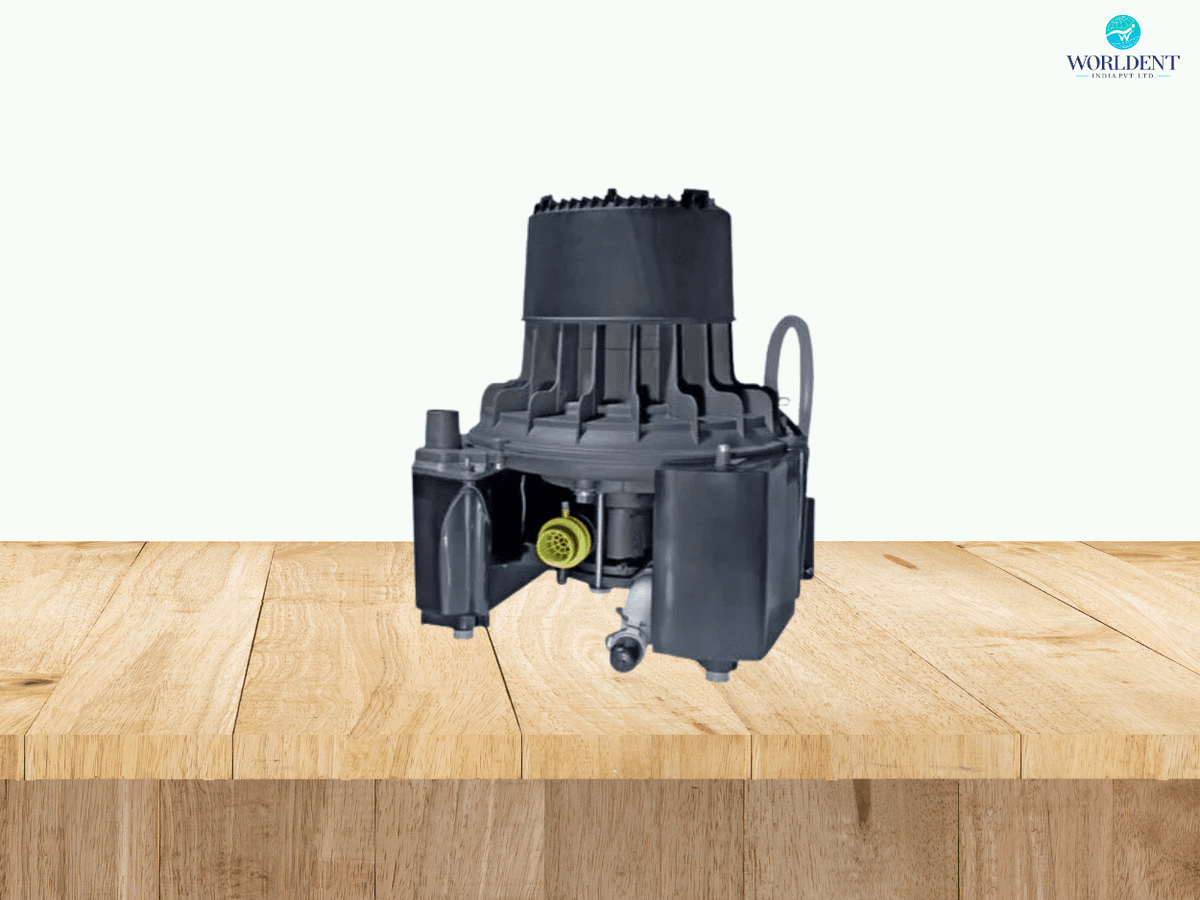

The Dürr VS 300 S is a compact wet-suction + separation unit (VS series) designed for one treatment chair / single operator (or up to two chairs with lower simultaneity). It combines vacuum generation and two-stage liquid/foam separation in one drive, provides continuous (100 %) duty operation, and delivers hygienic, quiet, reliable suction for smaller dental surgeries.
Key Features
Wet-Suction + Separation
Compact Footprint
Quiet Operation
Continuous Duty Cycle (S1)
Corrosion-Resistant Construction
Efficient Power Usage
2 Year Warranty
Free Installation
Technical Specifications
Voltage230 V, single-phase (1~)
Frequency50-60 Hz
Power Consumption0.58-0.80 kW
Current Draw≈ 2.9-3.7 A
Rotational Speed2,850 rpm
Max Vacuum≈ 180 mbar
Max Fluid Flow Rate≈ 4 L/min
Noise Level Without Housing≈ 63-65 dB(A)
Noise Level With Housing≈ 54-56 dB(A)
Dimensions Without Housing (HxWxD)37 × 31 × 31 cm
Dimensions With Housing51 × 36 × 36 cm
Weight Without Housing≈ 12.5 kg
Weight With Housing≈ 20 kg
Duty Cycle100 % (S1)
