Dental Suction

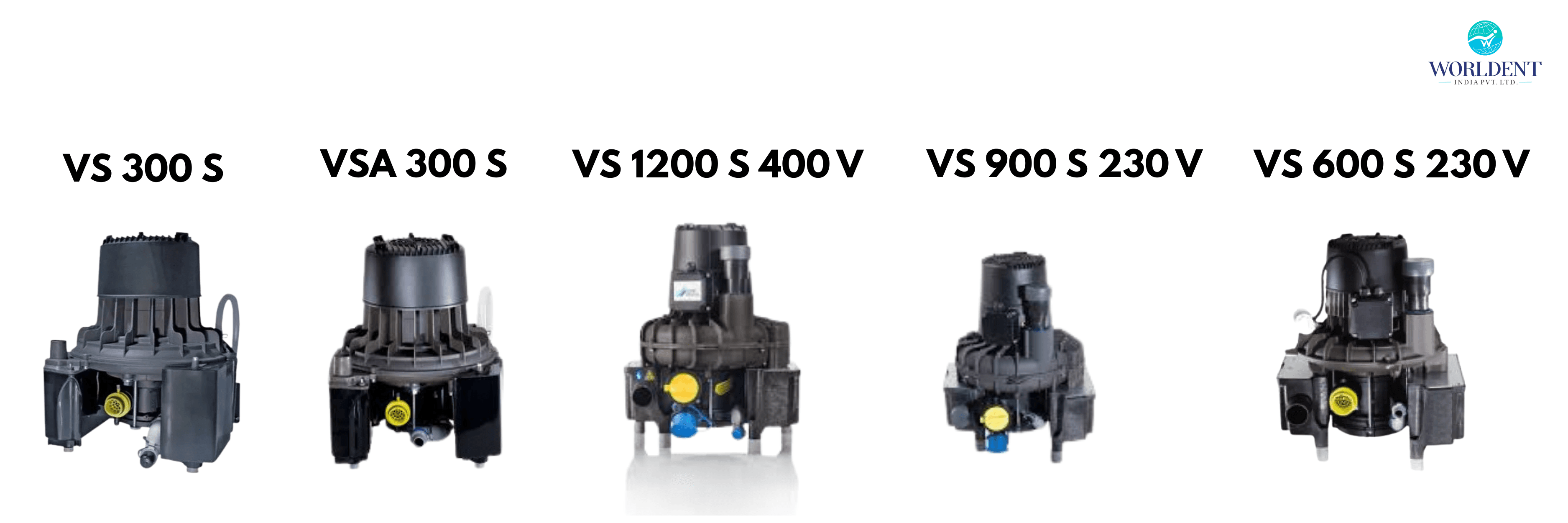

VS 1200 S 400 V Suction System
(4.9/5 - 127 reviews)
The Dürr VS 1200 S Wet Suction System (400 V, 3-phase) is a high-capacity, reliable suction unit designed to serve up to four simultaneous operators across up to six treatment rooms. Designed to provide both vacuum generation and liquid separation in one compact, efficient package, it features two-stage separation to prevent foam and debris from entering the drive turbine, sturdy construction, and quieter operation with housing options.
Key Features
Wet Central Suction
Two-Stage Separation
High Vacuum Level
Liquid Handling Capacity
Noise Control
Built-to Last
Compact Design with Optional Housing
2 Year Warranty
Free Installation
Technical Specifications
Voltage / Phase400 V, 3-phase
Frequency50 Hz
Current Draw3.5-3.8 A (depending on source)
Power Consumption~1.9-2.0 kW
Negative Pressure170 mbar (NLV with auxiliary air valve)
Max Liquid Flow Rate24 L/min
Weight without Housing≈ 32-33 kg
Weight with Housing≈ 48-52 kg depending on casing configuration
Dimensions without Condensate Separator (H×W×D)52 × 41 × 42 cm
Dimensions with Condensate Separator≈ 57 × 62 × 42 cm
Dimensions with Housing (H×W×D)≈ 55 × 49 × 53 cm
Noise Level without Housing≈ 66 dB(A)
Noise Level with Housing≈ 59 dB(A)
Separation Rate (with CA 4)≈ 98.9 %
